M&K VA500 Amp


Price:
Sale priceR 39,430.00

Description

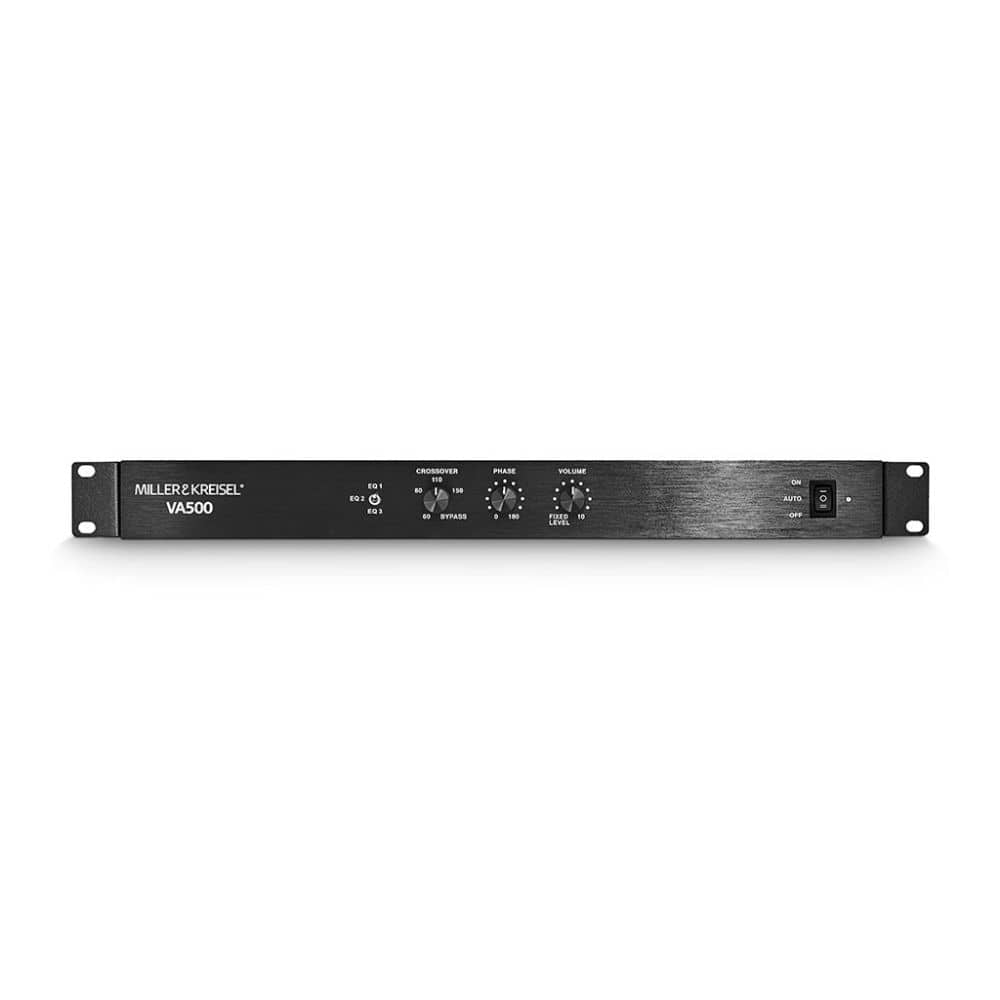

For perfect sonic integration with any satellite system, M&K Sound VA500 amplifier incorporates adjustable gain control including a fixed level position for reference set-up, continuously variable phase (0-180 degrees), variable crossover frequency (60Hz – 200Hz) and three-position room adaptation. The amp is one standard rack unit high and is supplied with removable handles for mounting in a 19” pro rack and feet for stand-alone placement.

This dedicated Class D amplifer with high efficiency, cool running and low standby voltage consumption is a further development of the amplifiers built into the popular M&K Sound V Series subwoofers. The Class D switch mode power module is designed with effective power reserves to effortlessly deliver copious amounts of clean power to the IW28S In-Wall sub for extraordinary, uncompromising handling of demanding deep bass transients.

A precisely calibrated dynamic headroom control circuit constantly monitors the signal to prevent audible clipping, while maintaining the full dynamic range of modern digital audio formats.

M&K SOUND VA500 AMPLIFIER SPECIFICATIONS

  • Continuous Output Power: 500W/4 Ohm, Class D
  • Peak Output Power: 800W/4 Ohm
  • System Preamp: Analog
  • Line-Level Connections: Phono In, Phono Passthrough Out
  • Speaker Connections: 5-way binding posts
  • Controls: Volume, Phase, Crossover
  • EQ Switch: 3-Position Room Adaptation:
    • For one sub placed away from corners
    • For one sub placed near a corner
    • For one or two subs placed in corner(s)
  • Input Voltage: 100-240 VAC (switchable), Auto On/Off
  • Dimensions (WxHxD): 16.88 x 1.74 x 8.81“
  • Dimensions (WxHxD): 429 x 44,4 x 224 mm
  • Dimensions (WxHxD): Rack size 19 x 1.74 x 8.81“
  • Dimensions (WxHxD): Rack size 483 x 44,4 x 224 mm
  • Weight: 8.8 lbs / 4 kg
